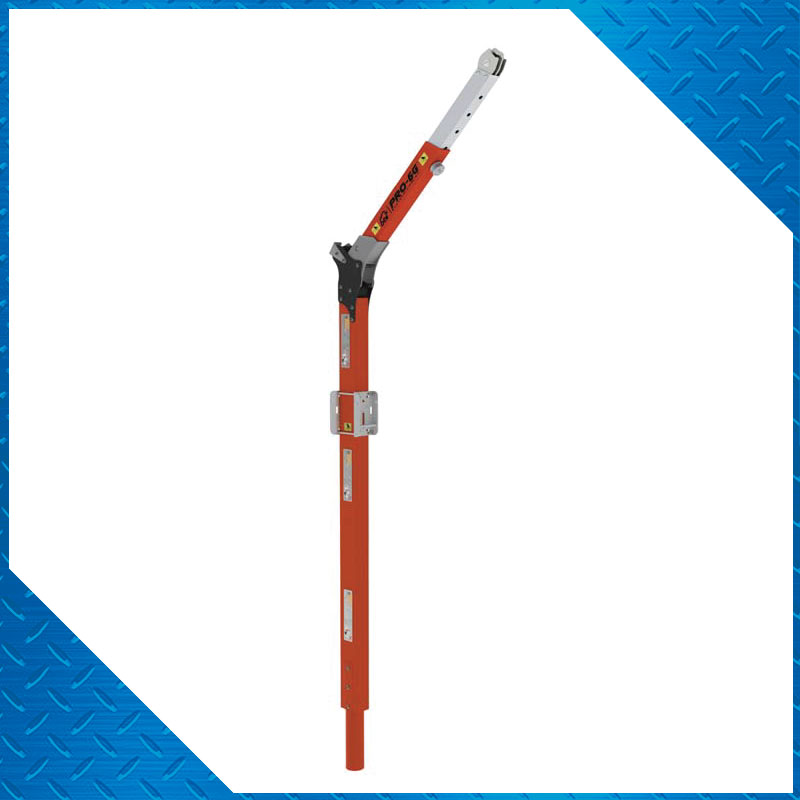

A lightweight aluminium modular unit that is easy to set up by just one person. With a built in fall and davit overload indicator, it is rated to 22kN. The PRO-6G davit system is a modular design allowing the user to create a davit setup for their individual requirements. With a range of brackets, winches and bases available, the PRO-6G Series is an ideal davit for confined space entry with a height of 1.96 – 2.79m and a offset of 0.5 to 0.7m.
Pro-6G Davit
Description

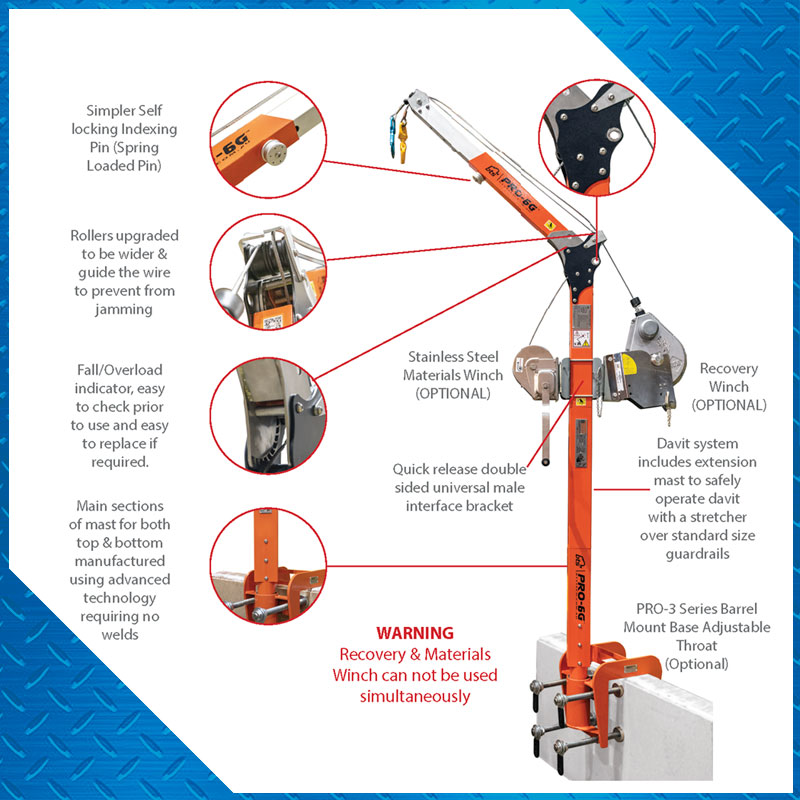

DESIGN:
- Manufactured using 6061-T6 Aluminium
- Powder-coated with AkzoNobel Interpon D610 advance coating

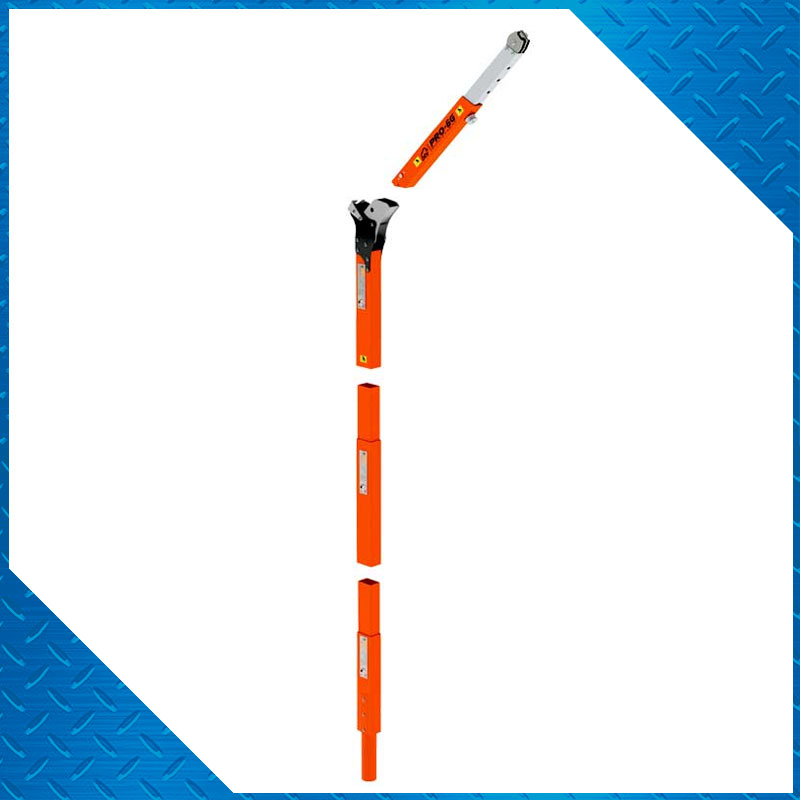

- Modular construction of up to 4 pieces allowing for ease of transport and storage
- Inbuilt visual fall & overload indicator
- 5 Off set adjustment settings from 0.5 to 0.7m with self locking indexing pin
- No special tools required for assembly or disassembly
- Suitable for both man and material lifting/lowering applications
- W.L.L. 140kg material handling
- Primary anchor is Man rated to 12kN (136kg including all tools and clothing)
- Secondary anchor is rated 15kN (anchor point for winch operator)
- Suitable for use in both permanent and portable davit bases
- Swivel 360 degrees
- Quick connect winch interface bracket
- AS/NZS 5532/ EN795/ ANSI Z359.18 compliant
- Independently certified by BPEQ Registered Engineer for Queensland
- Patent Pending System
SPECIFICATIONS:
| Ultimate Strength Rating: | 22kN |
| Capacity (Rescue): | Max. 1 worker weighing not more than 136kg each.* |
| Capacity (Fall Arrest): | Max. 1 worker per anchor point weighing not more than 136kg.* |
| Allowable MAF Rating for SRL’s: | 4kN |

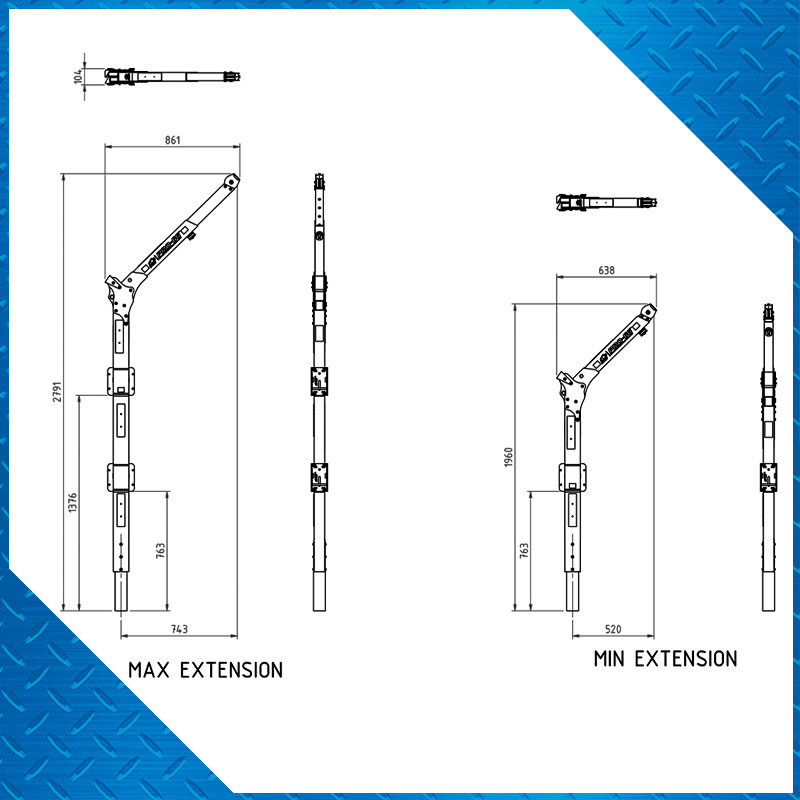

| Reach (4 Off set adjustment settings): | 0.5 to 0.7m |
| Height: | Max: 2.79m Min: 1.96m |
