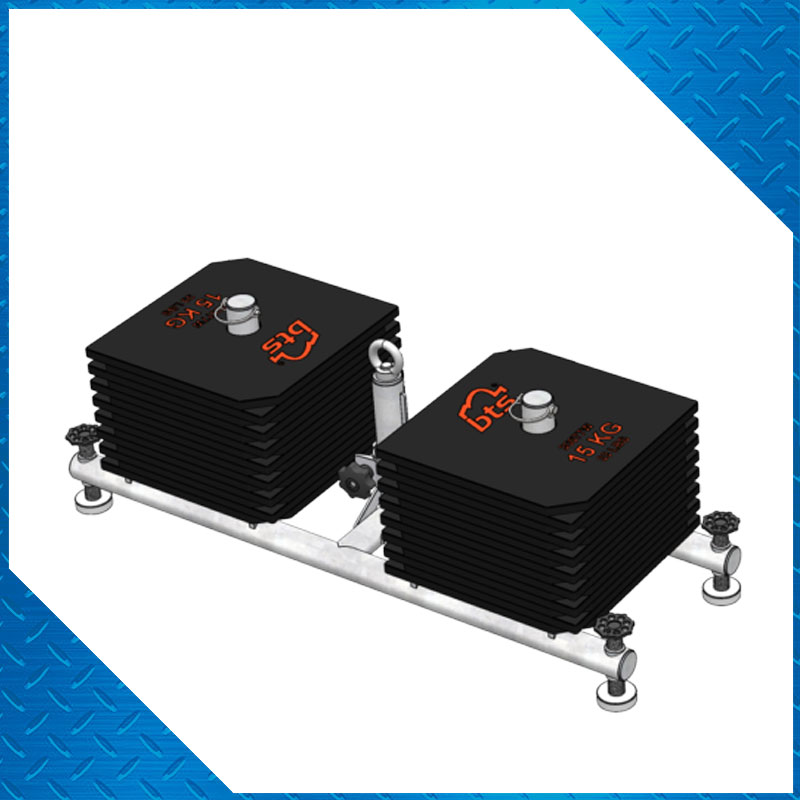

The PRO-6 Series Hitch Mount and Counterweight Base Davit system is your ultimate solution for height safety, fall arrest, leading edges and confined space entry and retrieval applications such as manholes, silos and pump stations. The PRO-6 Series Portable Hitch Mount Bases are designed for rugged and demanding applications using external weight sources to anchor the davit system.
CAPACITY
- Fall Arrest: Up to 2 users 140kg (310lbs) each.
- Work Positioning: Up to 2 users 140kg (310lbs) each.
- Rescue Retrieval: Up to 2 users 140kg (310lbs) each.
- MRC / WLL / Load: 140kg (310lbs) Max.
- Users: = 1 in pit & 1 operating winch
FEATURES
- Easy assembly, no tools required.
- Versatile, counterweighted base or attached to a vehicle with 50mm/2” hitch square receiver.
- Adjustable hitch mount height 340mm (13.3”) – 710mm (28.0”)
- Set up on uneven ground with independently adjustable support legs.
- Base can be rotated from the vehicle hitch up to 90° on either side.
- Full 360° rotation of Pro-6G davit for access and retrieval of workers or goods.
- Storage bag for easy transportation and storage.
- Separates into easy to carry components.
- Rated lifting point on the counterweight frame.
